Name |
Data |
Unit |
|
Model |

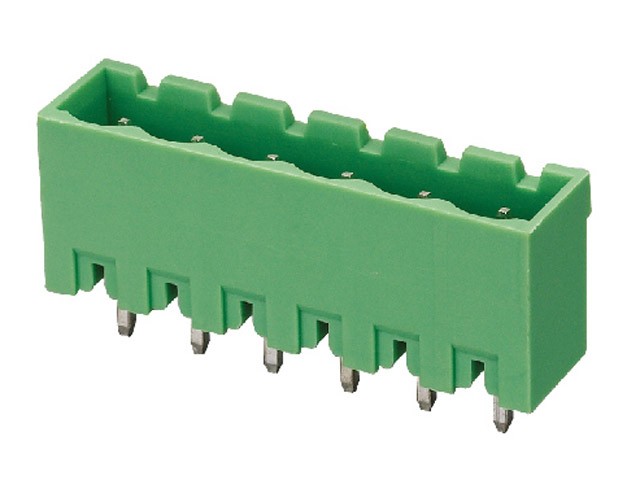

MB2.5/HC5.0(5.08) |
|
|
Pitch |
5.00(5.08) |
mm |
|
Digit |
2-24 |
|
|
Length |
L=(N-1)*P+7.0 |
mm |
|
Width |
8.6 |
mm |
|
Height |
12 |
mm |
|
PCB Hole diameter |
1.6 |
mm |
|
Insulation material group |
Ⅰ |
|
|
Complied standards① |
IEC |
|
|
Rated surge voltage（Ⅲ/3）① |
4 |
KV |
|
Rated surge voltage（Ⅲ/2）① |
4 |
KV |
|
Rated surge voltage（Ⅱ/2）① |
4 |
KV |
|
Rated voltage（Ⅲ/3）① |
320 |
V |
|
Rated voltage（Ⅲ/2）① |
320 |
V |
|
Rated voltage（Ⅱ/2）① |
630 |
V |
|
Nominal current① |
18 |
A |
|
Complied standards② |
UL |
|
|
Rated voltage② |
300 |
V |
|
Nominal current② |
18 |
A |
|
Insulation material |
PA66 |
|
|
Inflammability class |
UL94 V-0 |
|
|
Welding foot material |
Brass |
|
